Model 车型 Item 项目 |
Parameters 参数
|
||
|

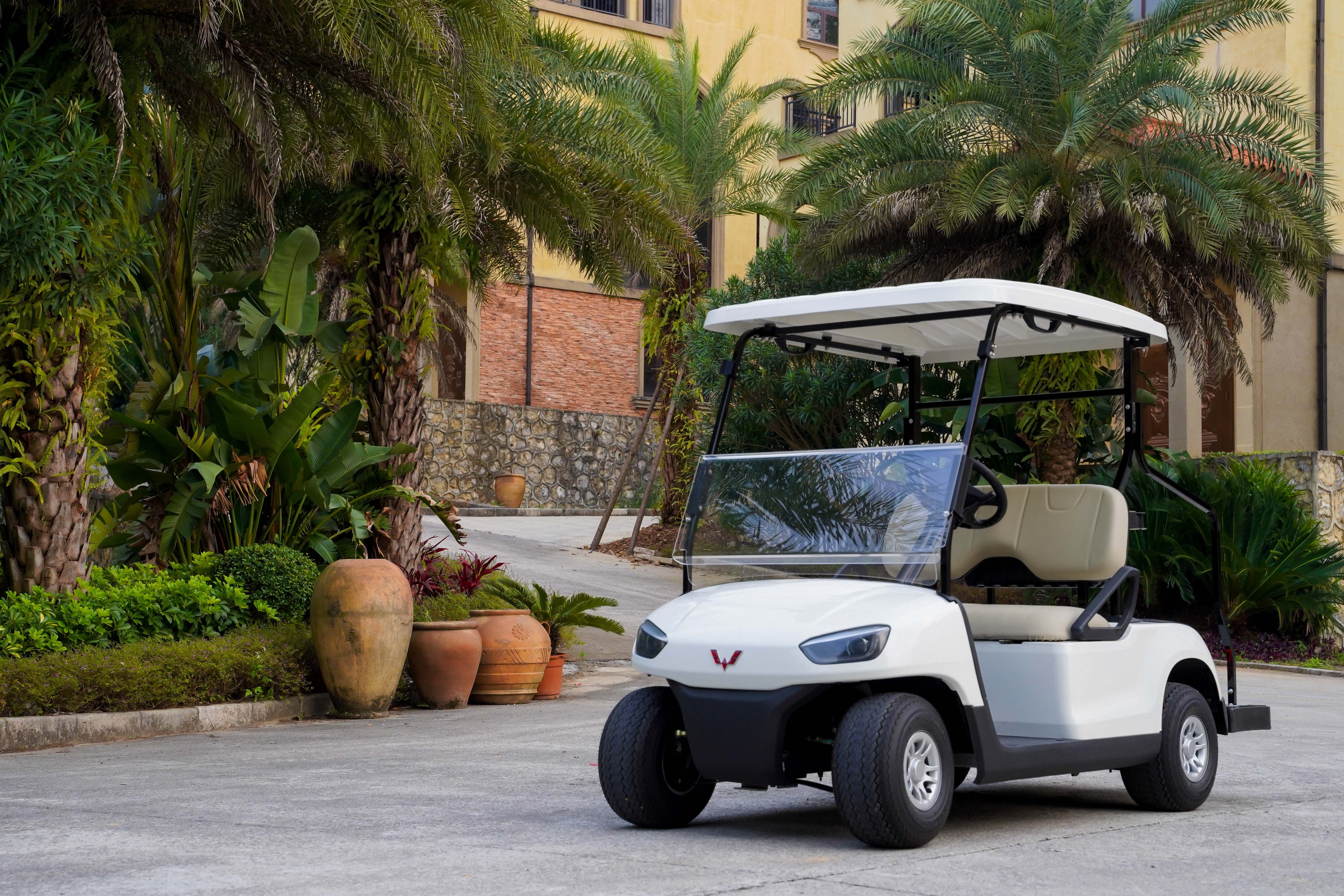

Picture 图片 |
|
||
|
Model 型号 |
WLDT2A |
||
|
Voltage 电压 |
48V |
||
|
Dimension Parameters 尺寸参数 |
Dimension(mm) 外形尺寸 |
Length 长 |
2690 |
|
|
|
Width 宽 |
1200 |
|
|
|
Height 高 |
1760 |
|
|
Wheelbase (mm) 轴距 |
1660 |
|
|
|
Track width 轮距 |
Front (mm)前轮 |
875 |
|
|
|
Rear(mm) 后轮 |
980 |
|
Mass parameters 质量参数 |
Kerb mass (kg) 整备质量 |
440 |
|
|
|
Gross mass (kg) 最大总质量 |
640 |
|
|
|
Axle load mass (kg) 轴载质量 |
Front axle 前轴 |
180 |
|
|
|
Rear axle 后轴 |
260 |
|
|
Passenger capacity 载客量 |
2 |
|
|
Through parameter 通过性参数 |
Min. turning diameter (m) 最小转弯半径(m) |
5.3 |
|
|
|
Min.ground clearance (full load) (mm) 最小离地间隙（满载） (mm) |
91 |
|
|
|
Angle of approach (full load) (°) 接近角（满载）(°) |
72.3 |
|
|
|
Departure Angle (full load) (°) 离去角（满载）(°) |
35.1 |
|
|
|
Front suspension (mm) 前悬 (mm) |
238 |
|
|
|
Rear suspension (mm) 后悬 (mm) |
408 |
|
|
performance 性能 |
Max. speed (full load) (km/h) 满载最高车速 (km/h) |
24 |
|
|
|
Max. climb %（°）最大爬坡度（°） |
30 (17.2) |
|
|
|
Cruising range(km) 续航里程 (km) |
80 |
|
|
Suspension frame 悬架 |
Front suspension 前悬架 |
Independent suspension, leaf spring with hydraulic shock absorber |
|
|
|
Rear suspension 后悬架 |
Non-Independent suspension, leaf spring with hydraulic shock absorber |
|
|
Tires 轮胎 |
Type of tire 轮胎类型 |
Pneumatic rubber tire 橡胶充气轮胎 |
|
|
|
Tire specification 轮胎规格 |
18x8.5-8 |
|
|
Electric Motor 电动机 |
Brand 品牌 |
HEPU POWER 合普动力 |
|
|
|
Model 型号 |
HPQ3 - 60C |
|
|
|
Rated Current (A) 额定电流 (A) |
80 |
|
|
|
Rated Voltage (V) 额定电压 (V) |
48 (AC) |
|
|
|
Rated Power (Kw) 额定功率 (Kw) |
3 |
|
|
|
Rated Torque (N.m) 额定扭矩 (N.m) |
9.6 |
|
|
|
Max. Torque (N.m) 最大扭矩 (N.m) |
80 |
|
|
|
Rated speed (r/min) 额定转速 (r/min) |
3000 |
|
|
Motor Controller 电机控制器 |
Brand 品牌 |
ENPOWER |
|
|
|
Model 型号 |
MC 3528 |
|
|
|
Rated Voltage (V) 额定电压 (V) |
48 |
|
|
|
Max. Current (A) 最大电流 (A) |
350 |
|
|
Battery 电池 |
Brand 品牌 |
LEOCH |
|
|
|
Model 型号 |
DT - 876 |
|
|
|
Voltage 电压 (V) |
8V – 170Ah/20Hr |
|
|
Rear axle 后桥 |
Brand 品牌 |
Liuzhou Wuling |
|
|
u Suspension 悬挂 |
|||
|
Front swing arm assembly 前摆臂总成 |
S |
||
|
Front shock absorber 前减震器 |
S |
||
|
Front leaf spring assembly 前钢板弹簧总成 |
S |
||
|
Front left and right knuckle with hub assembly 前左、右转向节带轮毂总成 |
S |
||
|
Rear axle assembly 后桥总成 |
S |
||
|
Rear axle leaf spring and bushing assembly 后桥钢板弹簧及衬套总成 |
S |
||
|
Rear shock absorber assembly 后减振器总成 |
S |
||
|
u Braking 制动 |
|||
|
Mechanical rear drum brake 机械后鼓式制动器 |
S |
||
|
Hydraulic front disc rear drum brake 液压前盘后鼓式制动器 |
- |
||
|
Parking brake 驻车制动 |
S |
||
|
Electronic brake 电子刹车 |
- |
||
|
Pedal unit 踏板组件 |
S |
||
|
u Interior and exterior decoration 内外饰 |
|||
|
Ball clamping position 卡球位 |
S |
||
|
Tee position (racking tool) Tee位（架球工具） |
S |
||
|
Water cup position 水杯位 |
S |
||
|
Ashtray 烟灰缸 |
O |
||
|
Sand pot fixed bandage 沙壶固定绑带 |
S |
||
|
GPS interface and installation position GPS接口及安装位置 |
S |
||
|
Instrument panel storage box 仪表板储物盒 |
S |
||
|
Solar roof 太阳能车顶 |
O |
||
|
Ice bucket fixing mechanism 冰桶固定机构 |
O |
||
|
Rain cover 雨罩 |
O |
||
|
Standing mechanism and guardrail of tail caddie 尾部球童站立机构及护栏 |
O |
||
|
Installation hole of sand rake seat 沙耙座安装孔 |
S |
||
|
Remarks: "s" standard configuration, "O" optional configuration, "-" not assembled 备注:”S”标配,”O”选配,”-”未装配 |
|||
